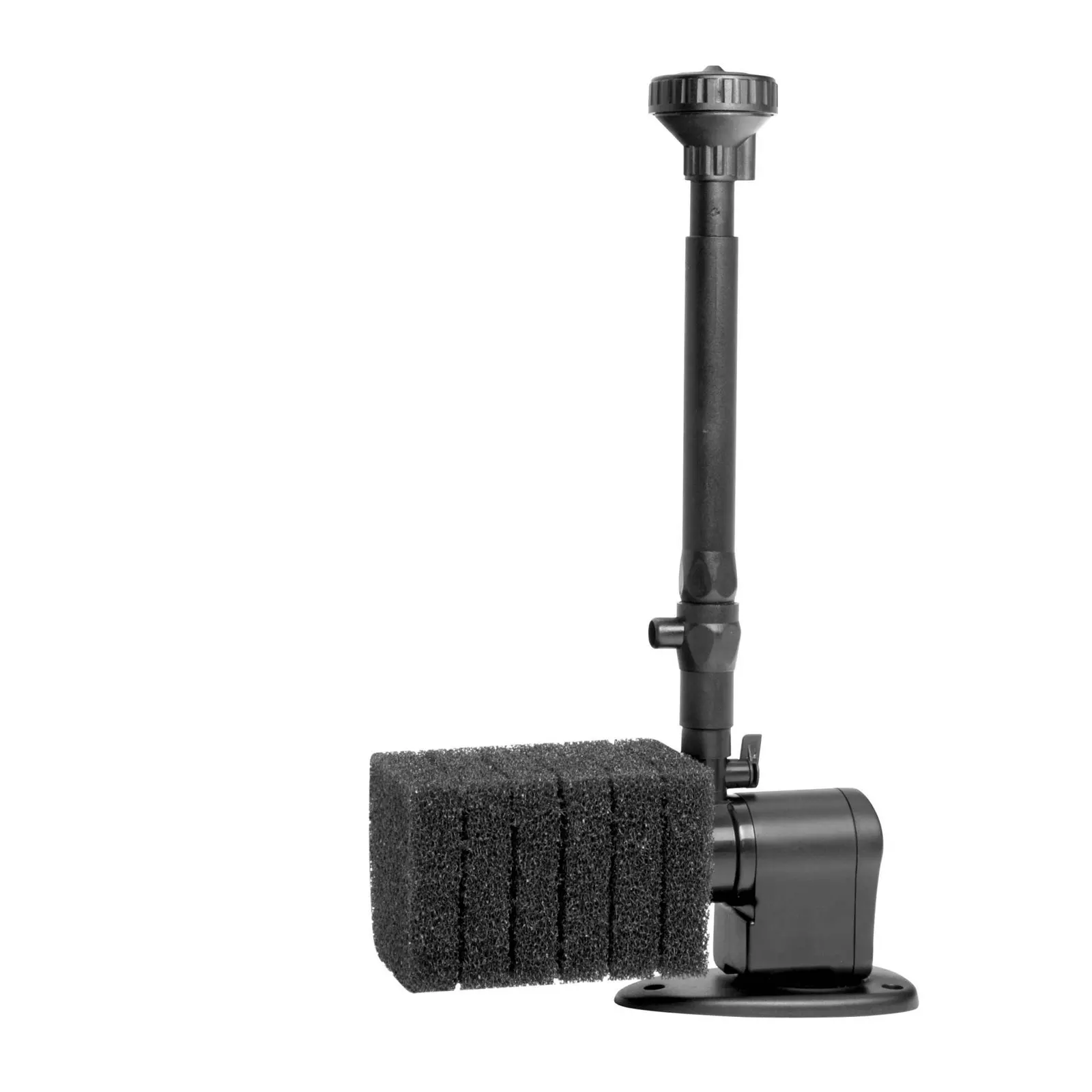

Aquael AQUAJET PFN 1500 Water Pump – 1500L/h

Aquael AQUAJET PFN 1500 is a versatile 1500L/h water pump designed for garden ponds, fountains, water features and compatible aquarium circulation systems. Featuring adjustable water flow, a 22W motor and a maximum pumping height of 1.6 metres, it offers a practical solution for moving water efficiently.

Unlike pumps designed exclusively for submerged operation, the AQUAJET PFN 1500 can be installed underwater or externally in a correctly plumbed water circulation system. Its built-in mechanical prefilter helps keep larger debris away from the impeller, reducing clogging and making routine maintenance easier.

Whether you need to circulate water through a pond filtration system, power a small water feature or move water through suitable aquarium plumbing, the Aquael PFN 1500 combines useful pumping capacity with simple operation and adjustable output.

Why Choose the Aquael AQUAJET PFN 1500?

• 1500L/h maximum flow: Provides water movement for compatible ponds, fountains and aquarium circulation systems.
• Adjustable flow rate: Control the water output using the adjustment mechanism on the pump outlet.
• 22W motor: Offers a practical balance between pumping capacity and electricity consumption.
• 1.6m maximum head height: Suitable for applications requiring moderate water lift.
• Wet or dry installation: Operates submerged or externally when installed according to the manufacturer's instructions.
• Mechanical prefilter: Helps prevent larger debris entering and obstructing the pump.
• Built for continuous operation: Designed for regular water circulation in compatible systems.
• Freshwater and marine compatibility: Suitable for appropriate freshwater and saltwater applications.
• Versatile applications: Suitable for ornamental ponds, water features, fountains and aquarium water circulation.

Adjustable Water Flow for Ponds and Water Features

Different pond and aquarium applications require different amounts of water movement. A decorative fountain may need a gentle flow, while a filtration return may require a higher volume of water.

The Aquael AQUAJET PFN 1500 features an adjustable output, allowing you to reduce water flow to suit the installation.

Its maximum rated capacity of 1500 litres per hour makes it a useful choice for selected small pond fountains, ornamental water features and water circulation applications.

Important: The stated 1500L/h is the maximum rated flow under minimal resistance. Actual output decreases as water is pumped higher or through longer hoses, bends and fittings.

Submersible or External Installation

The AQUAJET PFN 1500 is designed to provide flexible installation options.

Submersible Installation

Install the pump below the water surface in a suitable pond, fountain basin or filtration chamber. The mechanical prefilter helps protect the impeller from larger particles and debris.

Position the pump securely and ensure adequate water can enter the intake.

External In-Line Installation

The pump can also operate outside the water when connected correctly to a suitable water circulation system.

External installation may be useful where easier access to the pump is required or when keeping equipment outside the water feature.

Important: External installation does not mean the pump can run without water. The pump must remain properly supplied with water and installed according to Aquael's instructions.

Mechanical Prefilter Helps Reduce Clogging

Pond pumps can collect debris such as loose plant matter, sediment and suspended particles. If this material enters the impeller chamber, it can reduce flow or affect pump operation.

The Aquael AQUAJET PFN 1500 includes a mechanical prefilter designed to intercept larger debris before it reaches the pump mechanism.

The prefilter should be checked during regular maintenance and cleaned whenever accumulated debris begins to reduce water flow.

This feature helps reduce unnecessary maintenance while supporting reliable pump performance.

Suitable Applications

The Aquael AQUAJET PFN 1500 can be used for a variety of compatible water circulation tasks.

• Garden ponds: Circulating water through suitable small pond systems.
• Decorative fountains: Supplying water to compatible fountain outlets and features.
• Waterfalls and cascades: Moving water through small water features within the pump's capacity.
• Pond filtration: Supplying appropriate filters where the required operating flow is suitable.
• Aquarium circulation: Suitable freshwater or marine water movement applications.
• Water transfer: Moving clean water between suitable containers or connected systems.

When choosing a pump for a filtration system, always consider the required flow rate at the actual operating height and the resistance of the connected plumbing.

Understanding Flow Rate and Head Height

The Aquael AQUAJET PFN 1500 has two important performance ratings:

• Maximum flow rate: 1500 litres per hour.
• Maximum head height: 1.6 metres.

Maximum flow describes how much water the pump can move under favourable conditions with very little resistance.

Maximum head height describes the approximate highest level the pump can lift water before meaningful flow stops.

These ratings do not occur at the same time. At a working height approaching 1.6 metres, the available flow will be substantially lower than 1500L/h.

Allow for vertical lift, hose diameter, bends and restrictions when selecting a pump for your pond or aquarium.

Installation and Maintenance

1. Check that the pump's maximum flow and head height suit your intended application.
2. Position the pump securely underwater or connect it to compatible external plumbing.
3. Ensure all hose and pipe connections are secure.
4. Make sure the pump has a continuous water supply and the intake is unobstructed.
5. Connect the pump to a suitable protected electrical outlet, following the supplied instructions.
6. Adjust water flow to suit the fountain, filter or circulation system.
7. Monitor output and clean the mechanical prefilter when necessary.
8. Disconnect power before removing the pump or opening the impeller chamber for maintenance.

Maintenance tip: A noticeable reduction in water flow can indicate a clogged prefilter or impeller chamber. Regular cleaning helps maintain pumping performance.

Product Specifications

• Brand: Aquael
• Product: AQUAJET PFN 1500
• Manufacturer product code: 109436
• Barcode: 5905546133432
• Maximum flow rate: 1500L/h
• Power consumption: 22W
• Maximum head height: 1.6m
• Dimensions: Approximately 9 x 18 x 26cm
• Flow adjustment: Yes
• Mechanical prefilter: Included
• Installation: Submersible or externally plumbed
• Operating mode: Continuous operation
• Water compatibility: Freshwater and saltwater
• Motor protection: Overheat protection
• Protection rating: IPX8
• Power cable: Confirm the length on the supplied Australian stock
• Primary uses: Pond fountains, water features, pond filtration and compatible aquarium circulation

Frequently Asked Questions

How much water does the Aquael AQUAJET PFN 1500 pump?

The pump has a maximum rated capacity of 1500 litres per hour. Actual flow will be lower when pumping water through vertical plumbing, long hoses, bends or other restrictions.

What is the maximum head height of the AQUAJET PFN 1500?

The maximum head height is 1.6 metres. This is the pump's approximate maximum lifting capability, not the height at which it will still deliver 1500L/h.

Can the Aquael AQUAJET PFN 1500 operate outside the water?

Yes. The pump supports submerged and external in-line installation when connected according to Aquael's instructions. It must remain supplied with water during operation.

Is the AQUAJET PFN 1500 suitable for saltwater aquariums?

Yes. Aquael identifies the PFN 1500 as suitable for freshwater and saltwater applications. Follow the manufacturer's installation and maintenance instructions.

Can I adjust the water flow on the Aquael PFN 1500?

Yes. The pump includes a flow adjustment mechanism that allows the water output to be reduced for different applications.

Does the Aquael AQUAJET PFN 1500 include a prefilter?

Yes. It includes mechanical prefiltration to help stop larger debris reaching the impeller and reduce clogging.

How much electricity does the AQUAJET PFN 1500 use?

The pump is rated at 22 watts. Electricity consumption depends on operating time and actual power draw.

Can the AQUAJET PFN 1500 power a pond fountain?

Yes. The AQUAJET PFN range is designed for compatible fountains and pond water features. Check that the required fountain height and flow are within the pump's operating capability.
